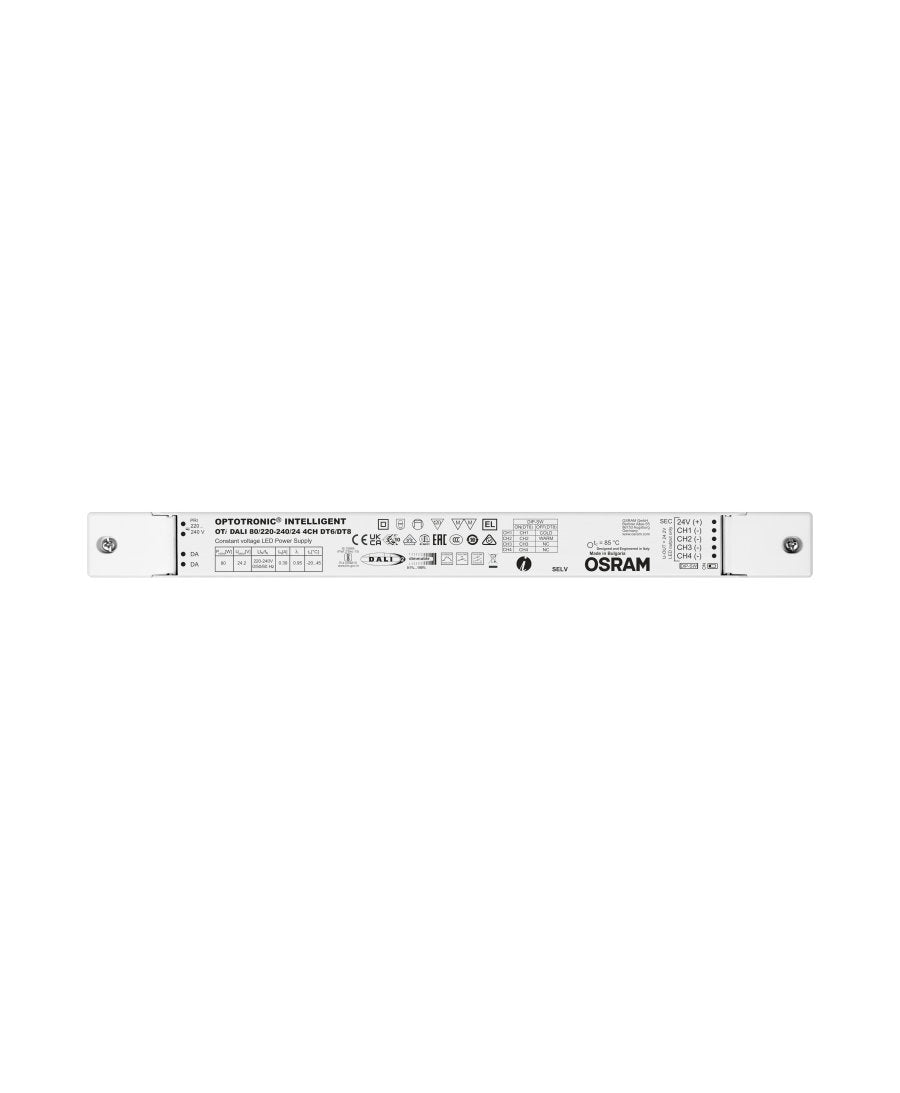

Name: Find something new to wear 58 OTi DALI 80 220-240 24 4CHDT6 8 Online now
SKU: 0A8E3B03ACB49B2F
Price: 58.00 USD
Availability: InStock

Product family benefits

Intelligent power matching thanks to Smart power supply

Form factor for mounting on the cove or in luminaires

No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)

Suitable for installation in emergency lighting systems according to EN 60598-2-22

DALI message detection LED Module failure

IP rating: IP20

Areas of application

Cove lighting, wall washer, corridor, handrail, luminous ceilings

Suitable for use in luminaires of protection class I and II

Equipment Accessories

Suitable for 24 V LED modules

Data sheet

More downloads

Find your LED driver

Driver Selector & OT-Poster

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

50 60 Hz

Input voltage AC

198…264 V

Total harmonic distortion

< 5 %

Power factor λ

0.89C…0.99

Efficiency in full-load

93 %

Device power loss

6.0 W

Networked standby power

<0.50 W

Inrush current

46 A

Max. ECG no. on circuit breaker 10 A (B)

9

Max. ECG no. on circuit breaker 10 A (C)

15

Max. ECG no. on circuit breaker 16 A (B)

15

Max. ECG no. on circuit breaker 16 A (C)

25

Max. ECG no. on circuit breaker 25 A (B)

23

Surge capability (L-N)

1 kV

Nominal output voltage

24 V

U-OUT (working voltage)

24.2 V

Nominal output power

80 W

Maximum output power

80 W

Galvanic isolation

SELV

Galvanic isolation primary secondary

3.75 kV

Output PWM frequency

> 2000 Hz

Input voltage DC

176…276 V

Output ripple Voltage (100 Hz)

< 1 %

Dimensions & weight

Mounting hole spacing, length

300.6 mm

Product weight

191.00 g

Cable cross-section, input side

0.5…2.5 mm²

Cable cross-section, output side

0.2…1.5 mm²

Wire preparation length, input side

6.0 mm

Wire preparation length, output side

5.0 mm

Width

32.0 mm

Height

22.0 mm

Length

346.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-20…+45 °C

Maximum temperature at tc test point

85 °C

Max.housing temperature in case of fault

115 °C

Temperature range at storage

-40…+85 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 h

Additional product data

Predecessor EAN

4052899452893, 4052899490758

Capabilities

Dimmable

Yes

Dimming interface

DALI-2 Touch DIM

Dimming range

0.1…100 %

Dimming method

Pulse Width Modulation

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Suitable for fixtures with prot. class

I II

Type of connection, input side

Screw terminal

Type of connection, output side

Screw terminal

Control interface

DALI-2

Number of channels

4

Programming

Tuner4TRONIC

Yes

Certificates & standards

Approval marks – approval

BIS CCC CE EAC EL ENEC 10 RCM VDE VDE-ENEC

Standards

Acc. to EN 61347-1 Acc. to EN 61347-2-13 Acc. to EN 61547 Acc. to EN 61000-3-2 Acc. to EN 62384 Acc. to EN 60598-2-22 Acc. to EN 62386 Acc. to EN 55015

Protection class

II

Type of protection

IP20

Logistical data

Commodity code

85044083900

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

11-09-2023

Primary Article Identifier

4062172177924

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

306178cd-0651-46ba-a40e-ff061546e88f

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

4062172177924
UNV

1

4062172177931
VS

20
370mm x 170mm x 113mm
3998.00
