PWM-120-12DA2 or 24DA2 Dali , please select Voltage Online now

PWM-120-DA2 Series Features:

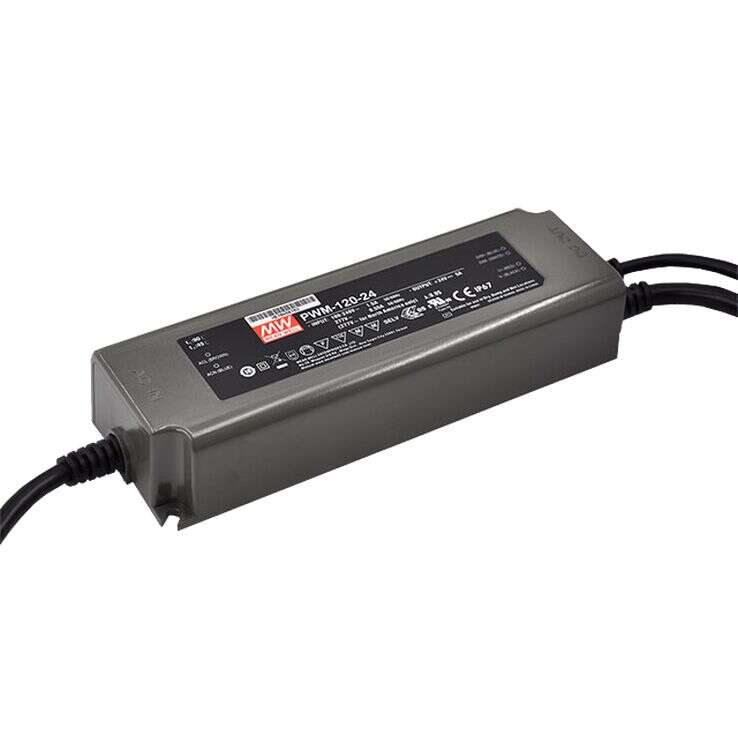

PWM-120 DALI 2 series is a DALI Dimmable LED AC DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.

Fully compatible with both DALI2 and DALI.

Features:

• Constant voltage PWM style output
• Emergency lighting application is available according to IEC61347-2-13
• Built-in active PFC function and class II design
• No load power consumption <0.5W standby power consumption <0.5W(DA DA2-type)
• Fully encapsulated with IP67 level
• Function: 3 in 1 dimming (dim-to-off); DALI DALI 2.0
• Minimum dimming level 0.2% for DALI type
• Typical lifetime >50000 hours and 5 years warranty

• Wattage		120		120
  Input Voltage		90-305VAC, 127-431VDC		90-305VAC, 127-431VDC
  Output Current		10A		5A
  Output Voltage		12V		24V
  Dimensions		191*63*37.5mm		150x 53x 35
  Working Temperature		-40~+85°C

  Voltage	12v, 24v
