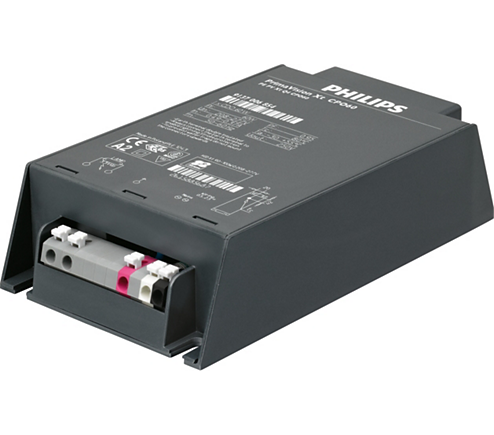

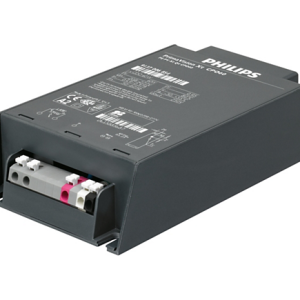

Philips HID-PV Xt 60 CPO L1 208-277V Online Sale

$61.94

28 people are viewing this right now
14 products sold in last 12 hours
Selling fast! Over 5 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications

General Information

Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Lamp type
CPO
Number of lamps
1 piece unit
Suitable for outdoor use
Yes
Number of products on MCB (16 A type B) (nom.)
11
Default lamp selected
CPO60
Automatic restart
Yes
Operating and Electrical

Input Voltage
208-240-277 V
Input frequency
50 to 60 Hz
Minimum mains voltage operation (min.)
172 V
Operating frequency (nom.)
0.40 kHz
Power factor 100% load (nom.)
0.97
Ignition voltage (max.)
5 kV
Ignition switch-off time (nom.)
20 min
Mains voltage performance (AC)
188-305V
Mains voltage safety (AC)
160-305V
Earth leakage current (max.)
0.7 mA
Output peak voltage (max.)
250 V
Inrush current width
0.42 ms
Lamp power tolerance
-3% +3%
Input current (nom.)
0.33 A
Inrush current peak (max.)
28 A
Efficiency at full load [%]
89.3 %
Wiring

Cable capacity output wires mutual (nom.)
1000 pF
Cable length from device to lamp
10 m
Wire strip length
10.0-11.0 mm
Ballast contact wire cross section
0.50-2.50 mm²
Connector type
WAGO series 804
System characteristics

Rated ballast-lamp power
60 W
Rated lamp power on CPO
60 W
System power on CPO
67 W
Lamp power on CPO
60 W
Power loss on CPO
7 W
Power loss on CPO while dimming
5 W
Temperature

T-ambient (max.)
55 °C
T-ambient (min.)
-30 °C
T storage (max.)
55 °C
T storage (min.)
-30 °C
T-case lifetime (nom.)
80 °C
T-case switch off (min.)
92 °C
Controls and Dimming

Programmable lamp settings
None
Pre-set integrated controls
None
Programmable dimming options
None
Control input protection
Yes (Basic insulation)
Regulating level
–
Mechanical and Housing

Housing
Q

Approval and Application

Surge protection (common differential)
EN61547 (L-L 2kV, L-G 4kV), 10kV TIL kV
IP luminaire classification
34
Active temperature protection
Yes
EMI 9 kHz … 300 MHz
CISPR 15 ed 7.2
EMI 30 MHz … 1,000 MHz
CISPR15 Edition 7.2
Safety standard
IEC 607, 609, 926, 928  [ No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
Vibration standard
IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps standard
IEC 68-2-29 Eb (10G 16ms)
Humidity standard
EN 61347-2-12 clause 11
Approval marks

F-Marking

CE marking

ENEC certificate

VDE-EMV certificate
Humming and noise level
< 30 dB(A)
Product Data

Full product code
871829124143000
Order product name
HID-PV Xt 60 CPO Q 208-277V
EAN UPC – product
8718291241430
Order code
24143000
Local order code
PVXT60CPOQ
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700685466
SAP net weight (piece)
0.820 kg
