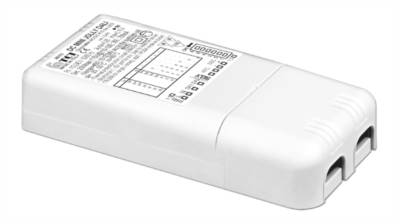

MINI JOLLY DALI 20 125403 Online Hot Sale
25 people are viewing this right now
18 products sold in last 11 hours
Selling fast! Over 18 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
FEATURES
Rated Voltage
110…127 V
220…240 V
Constant Current
Current
250 mA
220-240 V =Â Output power
10 W
110-127 V =Â
10 W
Current
350 mA
220-240 V =Â Output power
15 W
110-127 V =Â
15 W
Current
400 mA
220-240 V =Â Output power
17 W
110-127 V =Â
15 W
Current
450 mA
220-240 V =Â Output power
19 W
110-127 V =Â
15 W
Current
500 mA
220-240 V =Â Output power
20 W
110-127 V =Â
15 W
Current
550 mA
220-240 V =Â Output power
20 W
110-127 V =Â
15 W
Current
600 mA
220-240 V =Â Output power
20 W
110-127 V =Â
15 W
Current
700 mA
220-240 V =Â Output power
20 W
110-127 V =Â
15 W
Constant Voltage (LED STRIP)
Dimming:
DALI-1
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR, ENEC, UL (class 2), CCC, RCM, CE, EAC, IRAM, UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm

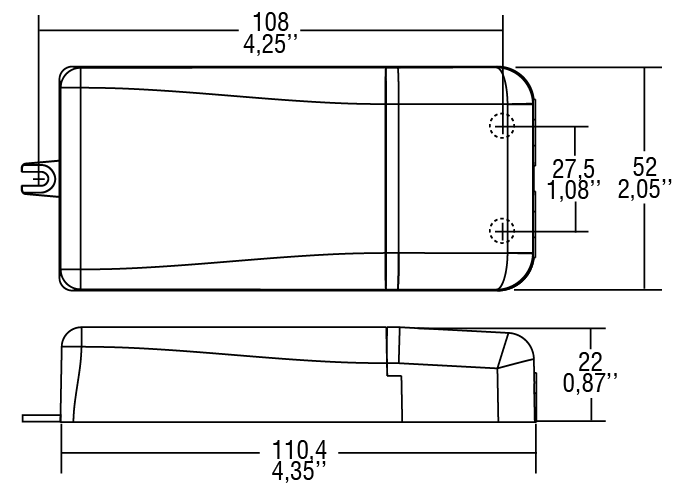

Size:
111 x 22 x 52 mm
Features
• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect contact.
• Driver for built-in use (DC MINI JOLLY DALI BI).
• It can be used for lighting equipment in protection class I and II (DC MINI JOLLY DALI BI).
• IP00, creepage distances and clearances rely on the final application according to IEC EN 60598-1 (DC MINI JOLLY DALI BI).
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm SEC 3-5 mm.
• Protections: – against overheating and short circuits; – against mains voltage spikes; – against overloads.
• Thermal protection = C.5.a
Title
