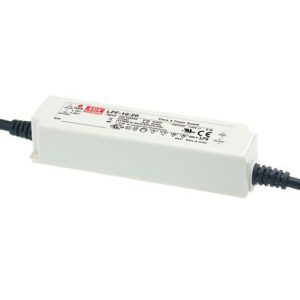

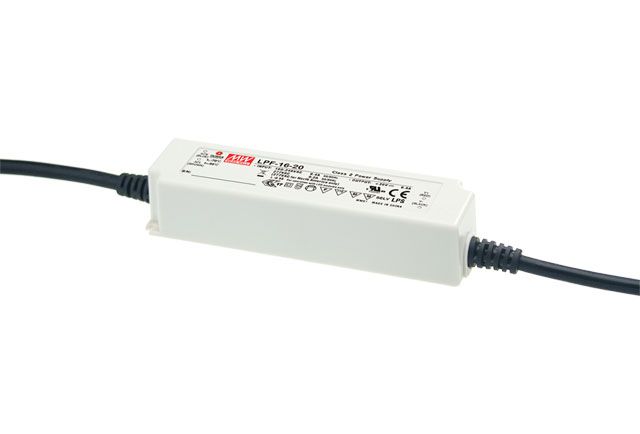

LPF-16-15 – Mean Well LED Driver LPF-16-15 16W 15V For Sale

Built-in active PFC functionUniversal AC input (up to 305VAC)  Full RangeProtections: Short circuit Overload Over voltage Over temperatureOther features: Fully isolated plastic case with IP30 levelCooling by free air convectionIsolation class II, no F.G.Class 2 power unit5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
16

Output Voltage
15V

Dimmable (Type)
No

Dimensions
148 x 40 x 30

EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage
90~305VAC; 127~431VDC

Safety Standards
Design refer to UL8750 ENEC EN61347-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+70°C (refer to output derating curve)

PDF Datasheet
LPF-16-spec_16.pdf
