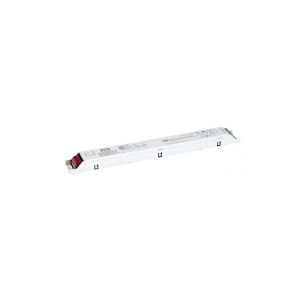

LDC-80S – Mean Well LDC-80 Series Constant Power LED Driver 700 – 2100mA 80W Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Features
Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load Standby power consumption <0.5W
Output current level pre-settable
Typical lifetime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
80
Dimmable (Type)
3 in 1 Dimming
Output Voltage Range (V)
27 ~ 56V
DC Output Adjustment
27-56V
Dimensions
360 x 30 x 21mm
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>50% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
Input Voltage
180-295VAC
Safety Standards
UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved
Output Voltage Options
Single
Working Temperature
-25°C-+80°C
PDF Datasheet
LDC-80-spec.pdf
