Product Details

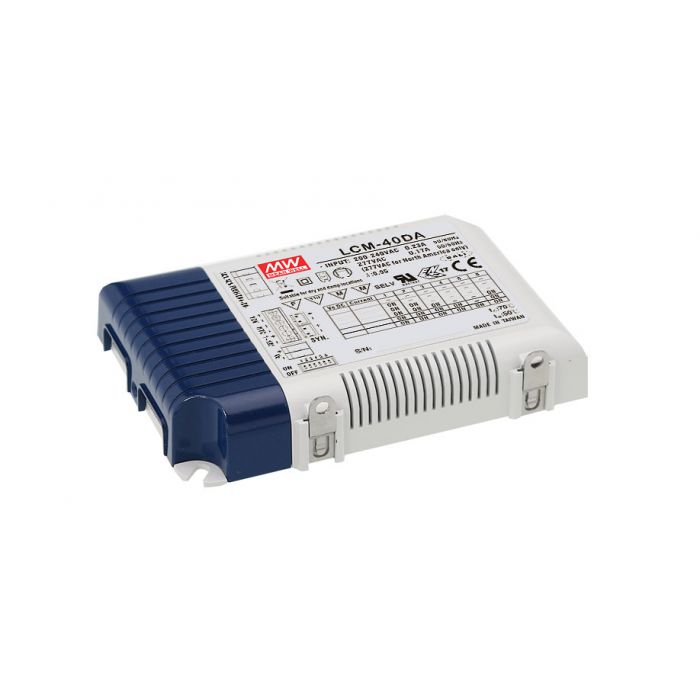

40W Constant current LED Power Supply LCM-40DA series
The LCM-40DA LED driver is a 40W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.
Output current level selectable by DIP Switch
180∼295V ac input only
Built-in active PFC function
Protections: Short circuit Over voltage Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
Built-in 12V 50mA auxiliary output
IP20 design
Temperature compensation function by external NTC
No load power consumption <1W
Power supplies synchronization function up to 10 units
Suitable for LED lighting applications
3 years warranty
Mean Well LED Drivers, Constant Current
Specifications
Attribute
Value
Input Voltage
180 → 295 V ac, 254 → 417 V dc
Output Voltage
2 → 100V
Operation
Constant Current
Output Current
1.05 A, 350 mA, 500 mA, 600 mA, 700 mA, 900 mA
Maximum Output Power
42W
Dimming Operation
DALI
AC or DC Input Voltage
ac, dc
IP Rating
IP20
Voltage Rating
180 → 295 V ac, 254 → 417 V dc
Title
Default Title
