Product description

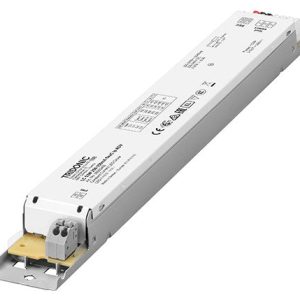

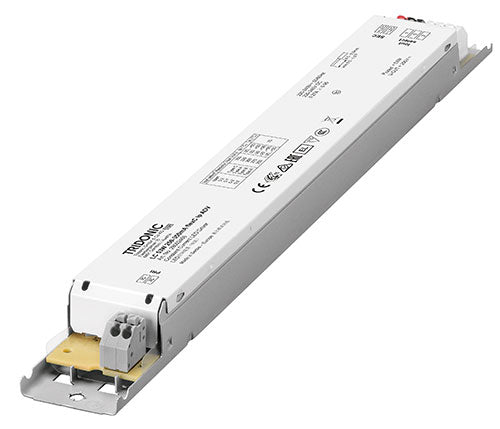

• LED Constant current LED driver for luminaire installation
• New version DC operating with EL marking
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Output current adjustable between 250 – 350 mA
• Max. output power 53 W
• Up to 90.5 % efficiency
• Nominal lifetime up to 100,000 h
• 5 years guarantee

• Housing properties

  • Low profile metal casing with white cover
  • Type of protection IP20

  • Interfaces

    • Terminal blocks: 45° push terminals

    • Functions

      • Overload protection
      • Short-circuit protection
      • No-load protection
      • Burst protection voltage 1 kV
      • Surge protection voltage 1 kV (L to N)
      • Surge protection voltage 2 kV (L N to earth)

      • Typical applications

        • For linear area lighting in office applications
