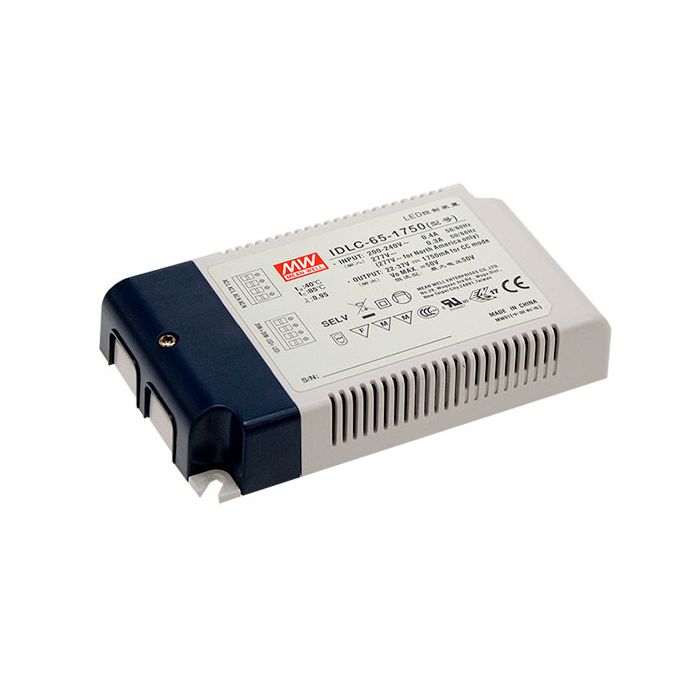

IDLC-65-1700 – Mean Well LED Driver IDLC-65-1750 Series 63W 1750mA Online Sale

Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit Overload Over voltage Over TemperatureOther features:Flicker free designPlastic housing with class II designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
63

Output Current
1750mA

Dimmable (Type)
Yes

Output Voltage Range (V)
27~36

DC Output Adjustment
27-36V

Dimensions
130x 75x 25

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)

Input Voltage
180-295VAC

Safety Standards
UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved

Output Voltage Options
Single

Working Temperature
-20°C-+85°C

PDF Datasheet
IDLC-65.pdf
