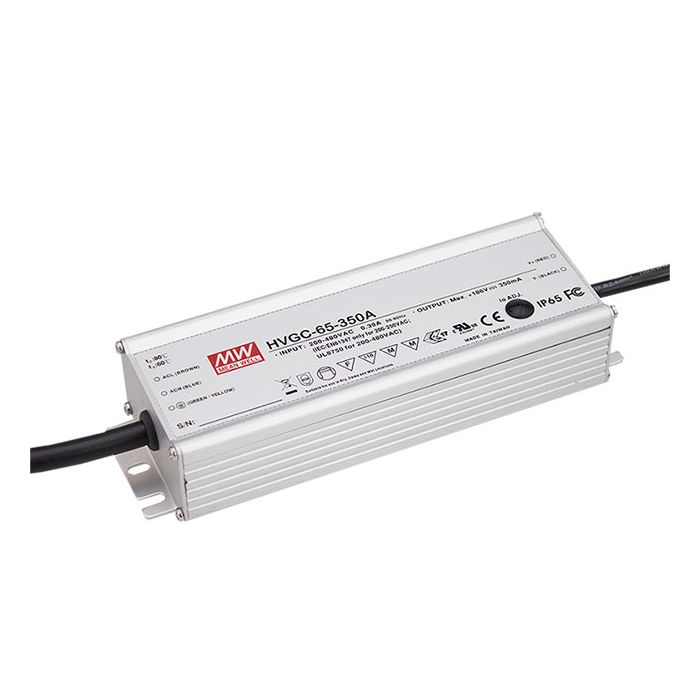

HVGC-65-1050B – Mean Well LED Driver HVGC-65-1050B 65W 1050mA Online Hot Sale

Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit Over current Over voltage Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 year warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
65

Output Current
1050mA

Dimmable (Type)
1-10VDC, PWM signal, resistance

Output Voltage Range (V)
6~62

Dimensions
189x 61.5x 36.8

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A

Input Voltage
180~528VAC, 254~747VDC

Safety Standards
UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved

Output Voltage Options
Single

Working Temperature
-30~+60°C (Refer to Derating Curve )

PDF Datasheet
HVGC-65-spec.pdf
