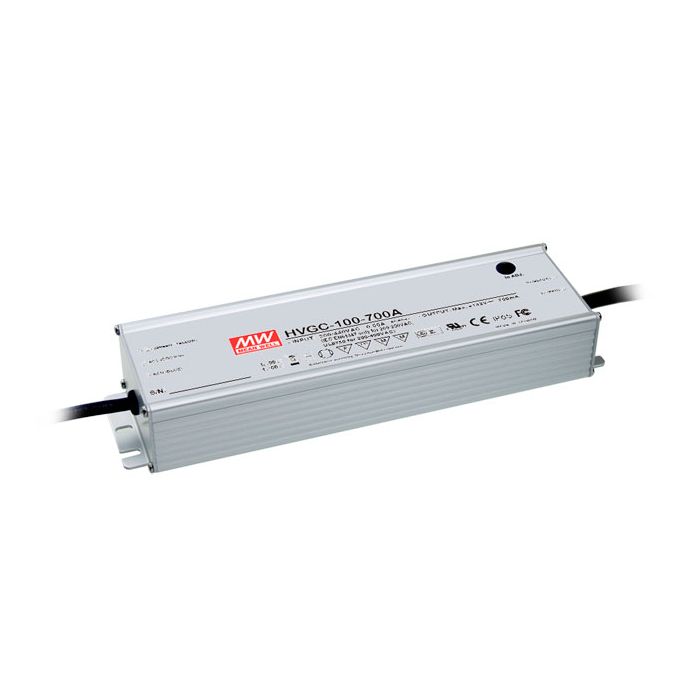

HVGC-100-700B – Mean Well LED Driver HVGC-100-700B 100W 700mA Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)
Built-in active PFC
Protections: Short circuit Over voltage Over temperature
Other features:
High efficiency up to 92%
Cooling by free air convection
Constant current design
Output current adjustable through output cable or internal potentiometer
Suitable for dry, damp and wet locations
Suitable for LED lighting and street lighting applications
IP67 design
5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
100
Output Current
700mA
Dimmable (Type)
1-10VDC, PWM signal, resistance
Output Voltage Range (V)
15~142
EMC Standards
Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
180~528VAC, 254~747VDC
Safety Standards
Design refer to UL8750, TUV EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C (Refer to Derating Curve )
PDF Datasheet
HVGC-100-spec_7.pdf
