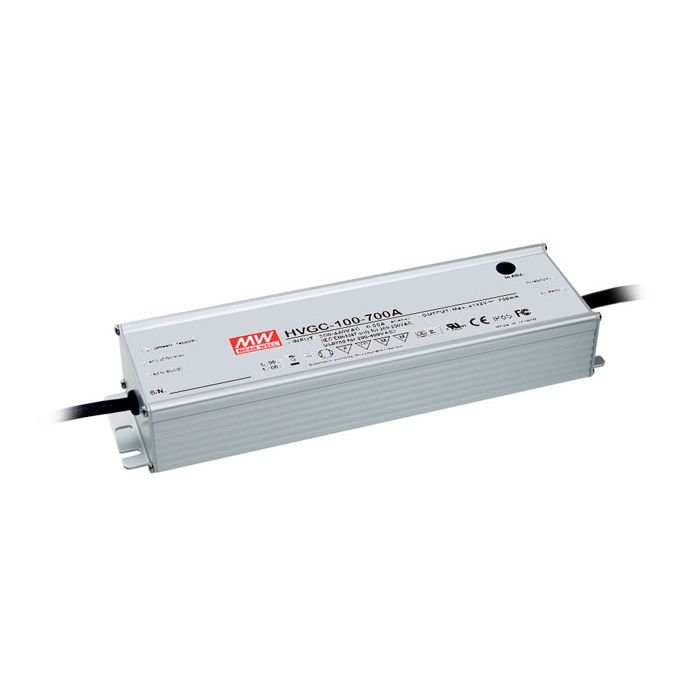

HVGC-100-350B – Mean Well LED Driver HVGC-100-350B 100W 350mA Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Built-in active PFCProtections: Short circuit Over voltage Over temperatureOther features:High efficiency up to 92%Cooling by free air convectionConstant current designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
100
Output Current
3500mA
Dimmable (Type)
1-10VDC, PWM signal, resistance
Output Voltage Range (V)
29~285
EMC Standards
Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
180~528VAC, 254~747VDC
Safety Standards
Design refer to UL8750, TUV EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+60°C (Refer to Derating Curve )
PDF Datasheet
HVGC-100-spec_5.pdf
