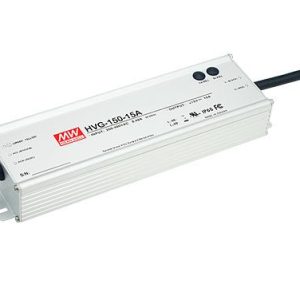

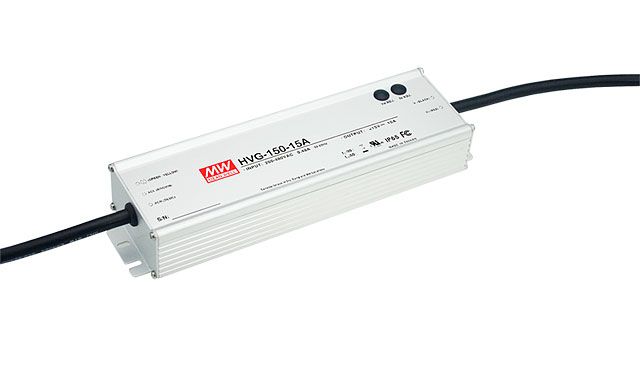

HVG-150-42B – Mean Well LED Driver HVG-150-42B 150W 42V Online now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit Over current Over voltage Over temperatureOther features:Cooling by free air convection3 in 1 dimming function (0~10Vdc, 10V PWM signal or resistance)IP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
150
Output Voltage
42V
DC Output Adjustment
38~46
Dimensions
245x 68x 38.8
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage
180~528VAC 254VDC~747VDC
Safety Standards
UL8750, CSA C22.2 No. 250.0-08, IP67 approved
Output Voltage Options
Single
Working Temperature
-10~+60°C
PDF Datasheet
HVG-150-spec.pdf
