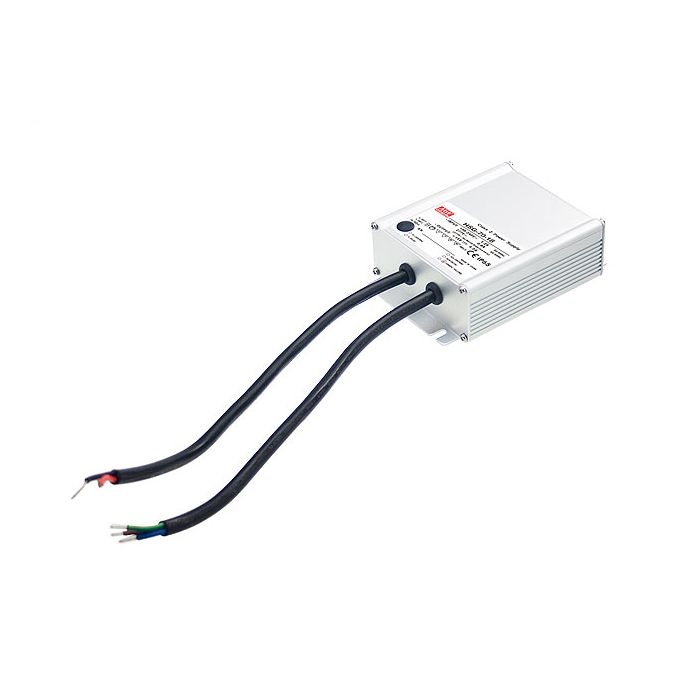

HSG-70-18 – Mean Well LED Driver HSG-70-18 70W 18V Online
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
IP65 design for indoor and outdoor installationsBuilt-in active PFCProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 90%Cooling by free air convectionSuitable for LED lighting and moving sign applications3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
70
Output Voltage
18V
Dimmable (Type)
AC phase-cut
EMC Standards
Design refer to EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
Design refer to UL8750, TUV EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HSG-70-spec_1.pdf
