HLP 1S LED S16 T5 T8 Led Emergency Solution BMM 1 KIT leds16 Sale

$37.37

30 people are viewing this right now
19 products sold in last 9 hours
Selling fast! Over 14 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

This has now been upgraded to the BMM 1-Kit LED S16 this is what you will be sent if you order this. The only difference is it operates as both maintained and non maintained.



The 3-hour emergency lighting driver operates the LED strip at 700mA which provides 240 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.



This product is suitable for mounting to a gear-tray adjacent to an LED tube, mitigating the risk of LED tubes being miss-replaced and causing non-compatibility with existing emergency packs.

BMM 1 Maintained Non-Maintained Driver

A 3-hour 700mA maintained non-maintained emergency driver designed for constant current LED devices, supplied complete with the latest, extra long life lithium iron phosphate (LiFePO4) battery packs. The unit is designed to power a single LED in emergency mode, which can also be used for night lighting, where required.

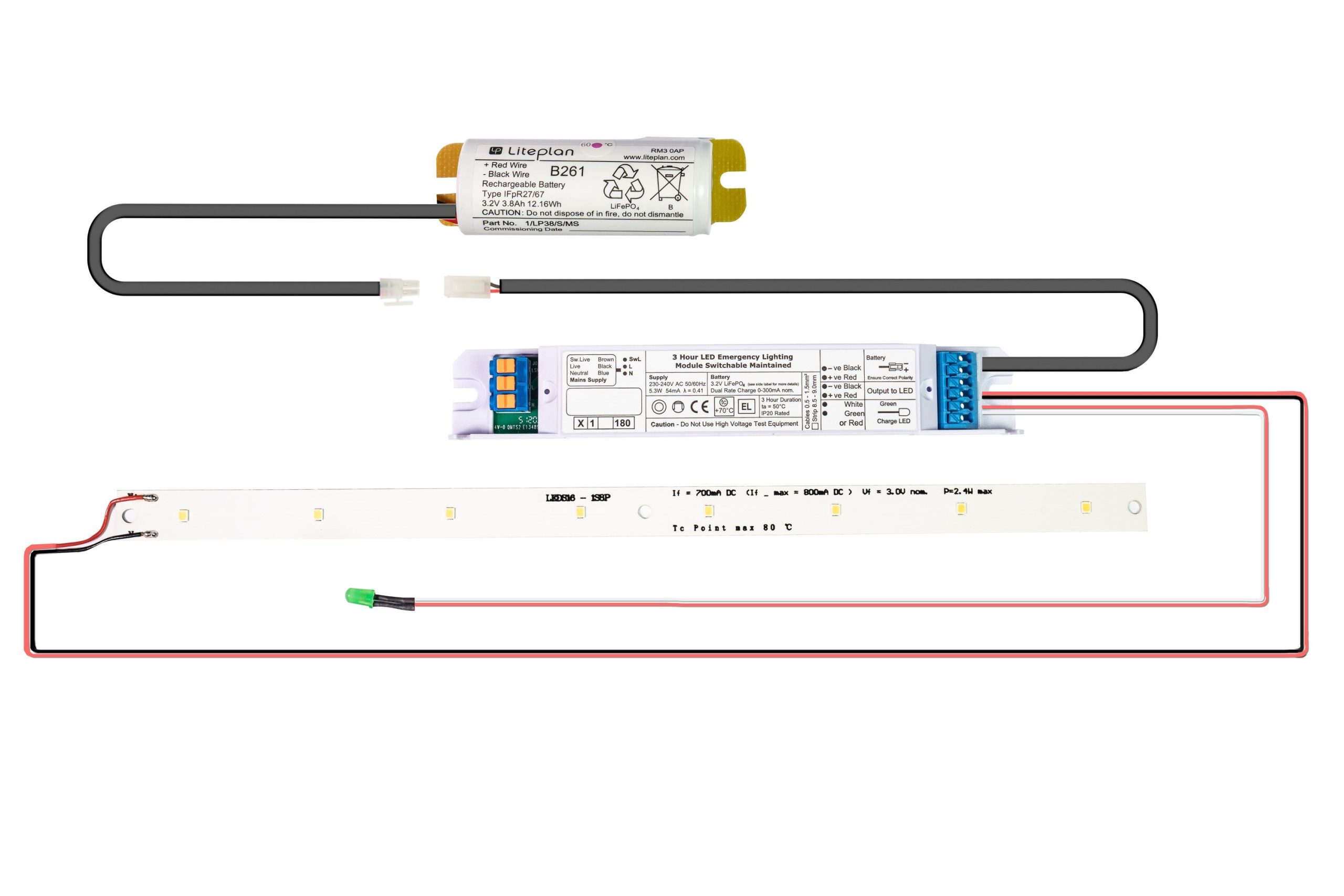

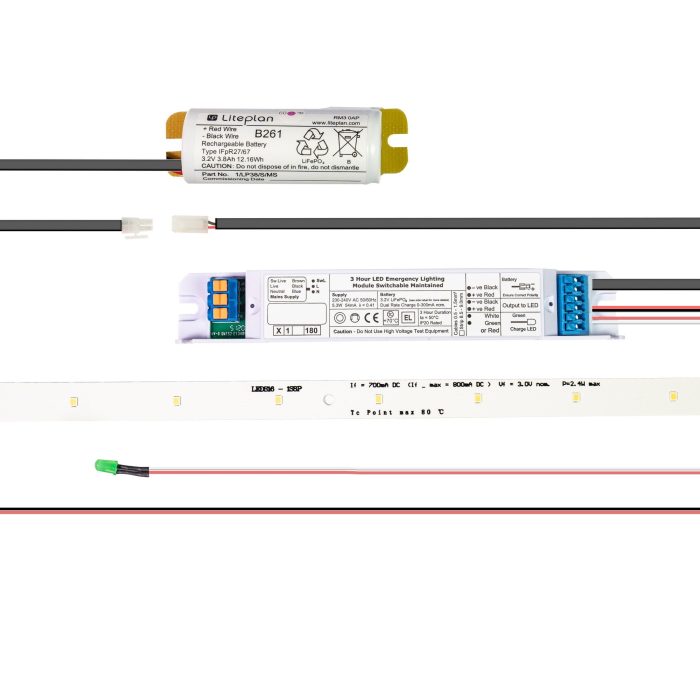

The Bmm 1 LEDS16 is supplied as a complete non-maintained Maintained emergency driver LED strip for integral mounting within a luminaire.

The 3-hour emergency lighting driver operates the LED strip at 700mA which provides 240 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.



This product is suitable for mounting to a gear-tray adjacent to an LED tube, mitigating the risk of LED tubes being miss-replaced and causing non-compatibility with existing emergency packs.



  • Operates With Extra Long Life LiFePO4 Batteries
  • Suitable for Mounting To Gear-tray
  • Deep Discharge Protection
  • 1W Load Emmitting 240 Lumen
  • For Non-Maintained Operation

    • Technical Details:



      Mains Supply

      230-240V AC 50 60 Hz

      Max Ta and Tc

      Ta – 50 °C – Tc – 70 °C

      Power Rating – Operating

      4.9W 51mA λ = 0.41

      Overall Weight

      0.4Kg

      – Charging

      2.0W 25mA λ = 0.35

      Battery Discharge Current

      660mA nominal

      – Charged

      0.45W 7.5mA λ = 0.24

      Recharge Period

      24-Hours

      Duration

      3-Hours

      Discharge Voltage Cut Off

      2.5 Volts

      Battery Size & Type

      3.2V 4.5Ah LiFePO4

      Ingress Protection

      IP20

      Charge Current

      Dual Rate 0-300mA

      Mains Input Terminal

      1.0mm² – 1.5 mm²

      Max Battery Temperature                   55 °C

      Battery Dimensions (LxWxH)               230mm x 24mm x 21mm Battery Fixing Centres             215-220mm

      Module Dimensions (LxWxH) Module Fixing Centres

      LED Strip Dimensions

      165mm x 26.5mm x 21.5mm 155mm

      304mm x 15mm
