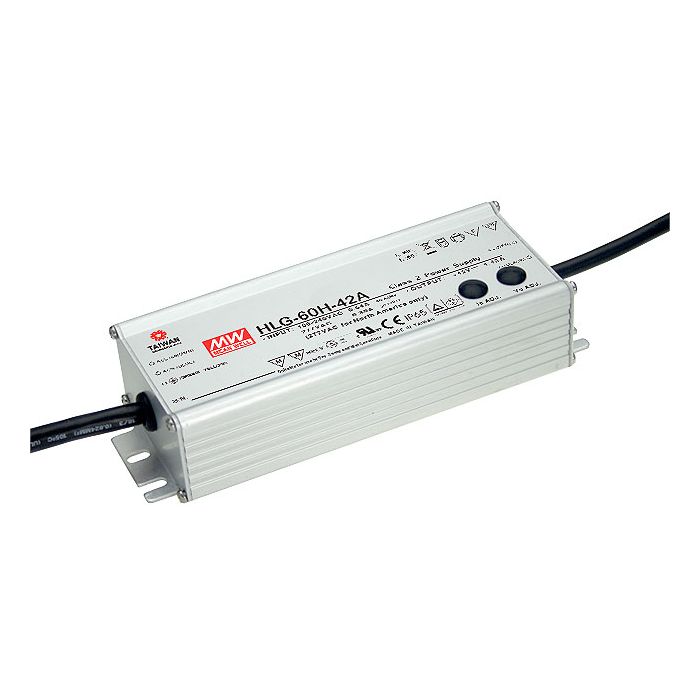

HLG-60H-S – Mean Well HLG-60H Series LED Driver 60W 15V – 54V Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
IP65 design for indoor or outdoor installations
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit Over current Over voltage Over temperature
Other features:
Universal AC input (up to 305VAC) Full range
High efficiency up to 90.5%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
IP65 rated
More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Dimmable (Type)
Choose Option
DC Output Adjustment
-0
EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1
Output Voltage Options
Single
Working Temperature
-40~+50°C (refer to output derating curve)
PDF Datasheet
HLG-60H-spec_12.pdf
