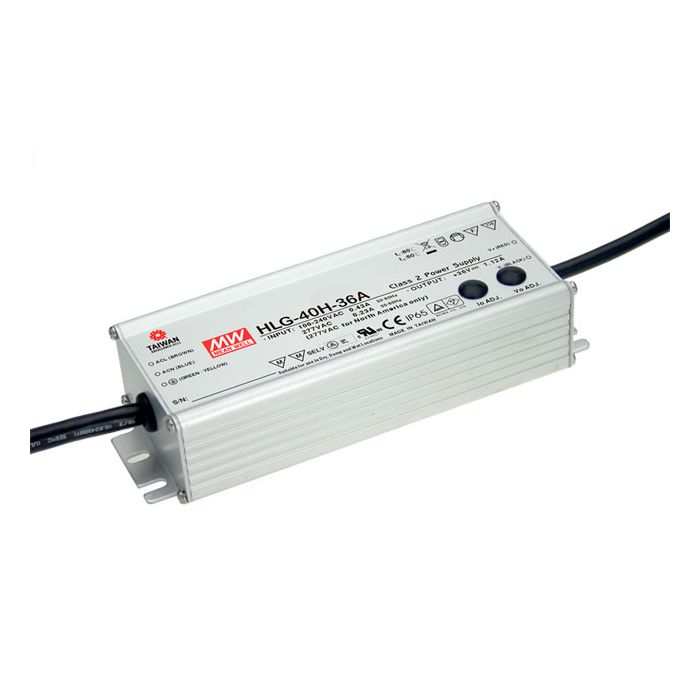

HLG-40H-S – Mean Well HLG-40H Series LED Driver 40W 12V – 54V Hot on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
IP65 design for indoor or outdoor installations
Output voltage and constant current level can be adjusted through internal potentiometer.
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit Over current Over voltage Over temperature
Other features:
Universal AC input (up to 305VAC) Full range
High efficiency up to 90.5%
Output current adjustable through output cable
Cooling by free air convection
IP65 rated
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
More Information
Manufacturer
Mean Well
Output Wattage (W)
40
Dimmable (Type)
Choose Option
DC Output Adjustment
-0
EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HLG-40H-spec_11.pdf
