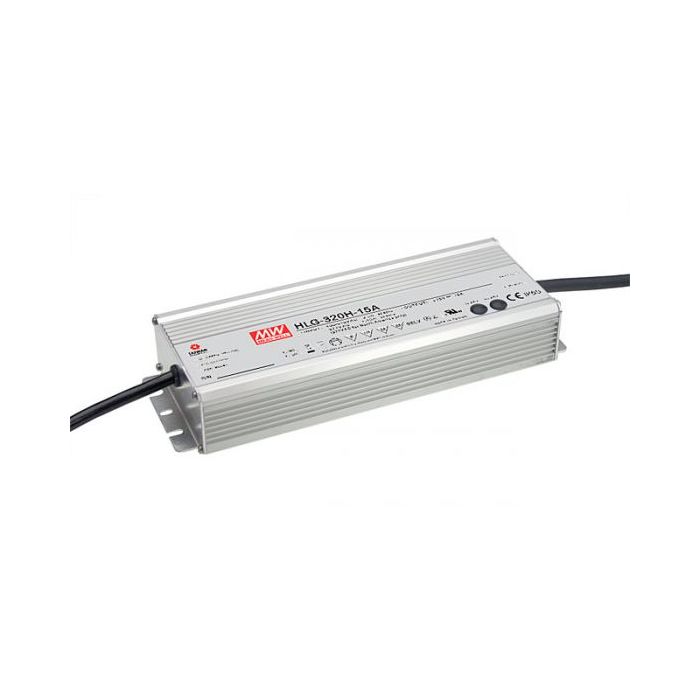

HLG-320H-BS – Mean Well HLG-320HB Series IP67 Rated LED Driver 264W – 320W 12V – 54V Online Hot Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)IP67 design for indoor or outdoor installationsProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 95% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
320
Dimmable (Type)
1-10VDC, PWM signal, resistance
Dimensions
252 x 90 x 43.8 (LxWxH) Mm
EMC Standards
EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, UL1012, UL60950-1
Output Voltage Options
Single
Working Temperature
-40-+70°C
PDF Datasheet
HLG-320H-spec_4.pdf
