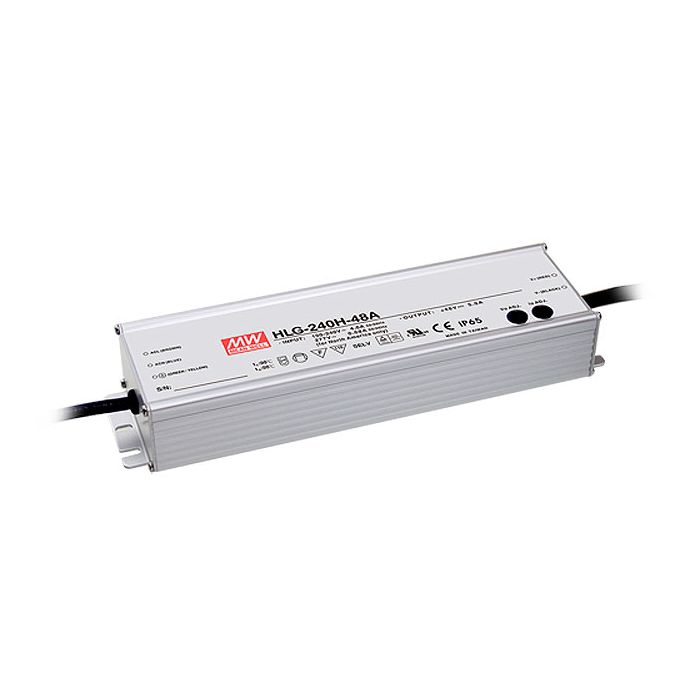

HLG-240H-SA – Mean Well HLG-240H A Series LED Driver 192W – 240W 12V – 54V Online
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Protections: Short circuit Over current Over voltage Over temperature
Other features:
Universal AC input (up to 305VAC) Full range
High efficiency up to 95%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Multiple models for choice:
Built-in active PFC function, PF>0.9 for 60% of load or higher
IP65 rated
5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
240
Dimmable (Type)
1-10VDC, PWM signal, resistance
DC Output Adjustment
+ -6% rated output voltage
Dimensions
244.2 x 68 x 38.8
EMC Standards
EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HLG-240H-spec_7.pdf
