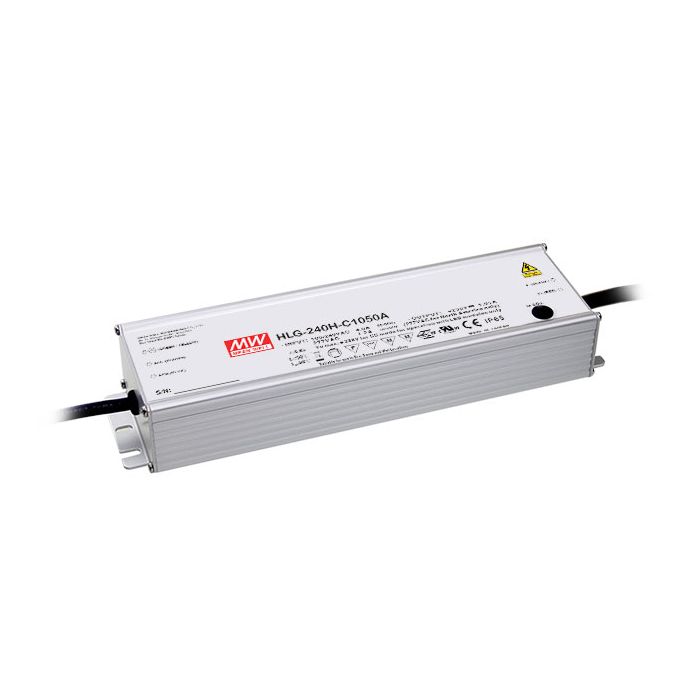

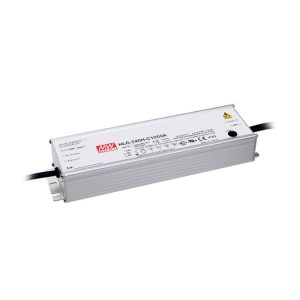

HLG-240H-C-S – Mean Well HLG-240H-C Series LED Driver 249.9-250.6W 700-2100mA Online

$50.98

28 people are viewing this right now
9 products sold in last 2 hours
Selling fast! Over 17 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Constant current designMetal housing with class I designProtections: Short circuit Over voltage Over temperatureOther features:IP67 IP65 design for indoor or outdoor installationsFunction options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimmingIP67 design for indoor or outdoor installationsTypical lifetime >62000 hours7 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

249.9

Output Current

Choose Option

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

244.2x 68x 38.8

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)

Input Voltage

90-305VAC 127-431VDC

Safety Standards

UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent; IP65 or IP67 approved

Output Voltage Options

Single

Working Temperature

Tcase= -40~+90°C (Refer to “Derating Curve”)

PDF Datasheet

HLG-240H-C-SPEC.PDF
