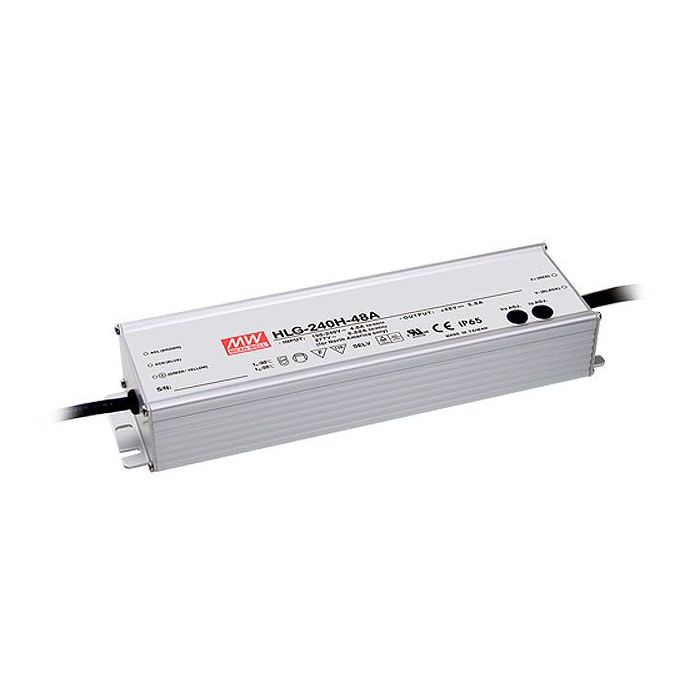

HLG-240H-BS – Mean Well HLG-240H B Series IP67 Rated LED Driver 192W – 240W 12V – 54V Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)IP67 design for indoor or outdoor installationsProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 95% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Multiple models for choice:Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
240
Dimmable (Type)
1-10VDC, PWM signal, resistance
DC Output Adjustment
+ -6% rated output voltage
Dimensions
244.2 x 68 x 38.8 (LxWxH) Mm
EMC Standards
EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HLG-240H-spec.pdf
