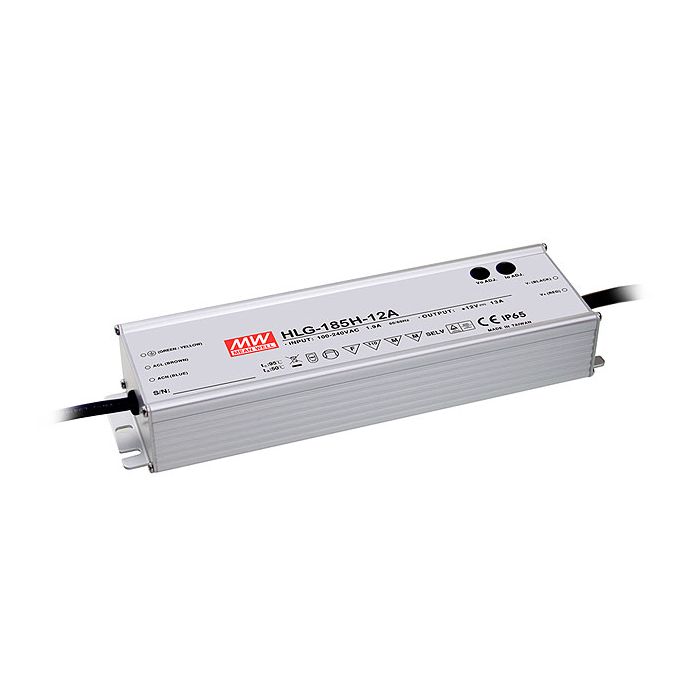

HLG-185H-S – Mean Well HLG-185H Series LED Driver 156W – 186W 12V – 54V Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
IP65 rated Built-in active PFC, PF>0.9 for 60% of load or higher
Output voltage and constant current level can be adjusted through internal potentiometer.
5 years warranty
Protections: Short circuit Over current Over voltage Over temperature
Other features:
Universal AC input (up to 305VAC) Full range
High efficiency up to 95%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Optional CQC models available
IP65
More Information
Manufacturer
Mean Well
Output Wattage (W)
185
Dimmable (Type)
Choose Option
DC Output Adjustment
49 ~ 58V
Dimensions
228*68*38.8mm
EMC Standards
EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1
Output Voltage Options
Single
Working Temperature
-40~+70°C (refer to output derating curve)
PDF Datasheet
HLG-185H-spec_10.pdf
