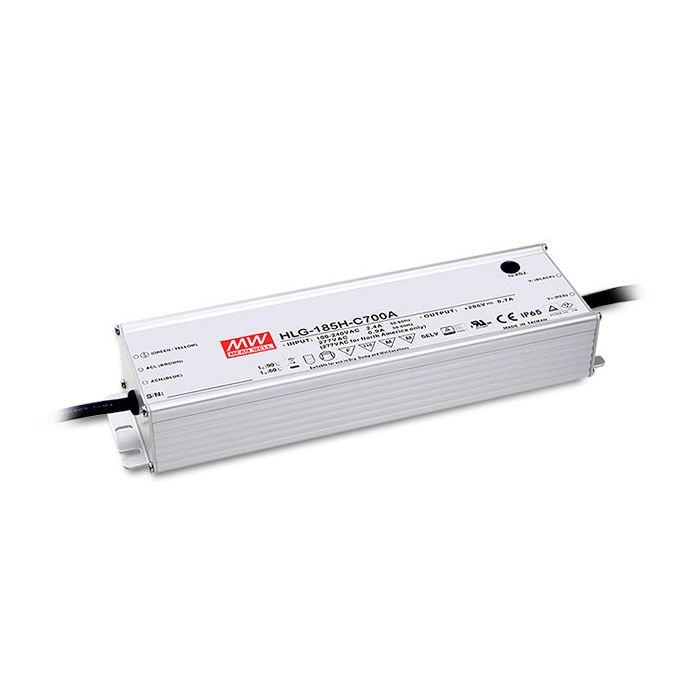

HLG-185H-C700A – Mean Well LED Driver HLG-185H-C700A 200W 700mA Online Sale

$36.37

23 people are viewing this right now
20 products sold in last 15 hours
Selling fast! Over 14 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Constant current designOutput voltage and C.C level can be adjusted through internal potentiometerProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeIP65 design for indoor or outdoor installationsHigh efficiency up to 94% Cooling by free air convectionBuilt-in active PFC function5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
200

Output Current
700mA

Dimmable (Type)
1-10VDC, PWM signal, resistance

Dimensions
228x 68x 38.8

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (¡Ù50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A

Input Voltage
90~305VAC, 127~431VDC

Safety Standards
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved

Output Voltage Options
Single

Working Temperature
-40~+70°C (refer to output derating curve)

PDF Datasheet
HLG-185H-C-spec_3.pdf
