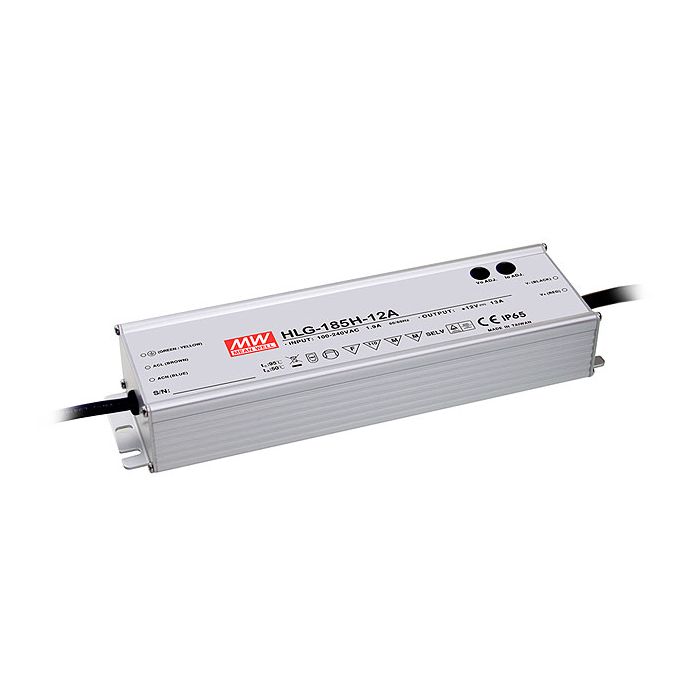

HLG-185H-20A – Mean Well LED Driver HLG-185H-20A 186W 20V For Cheap

IP65 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableOutput voltage and C.C level can be adjusted through internal potentiometer
More Information

Manufacturer
Mean Well

Output Wattage (W)
185

Output Voltage
20V

Dimmable (Type)
1-10VDC, PWM signal, resistance

DC Output Adjustment
17 ~ 22V

Dimensions
228*68*38.8mm

EMC Standards
EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage
90~305VAC, 127~431VDC

Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1

Output Voltage Options
Single

Working Temperature
-40~+70°C (refer to output derating curve)

PDF Datasheet
HLG-185H-spec_1.pdf
