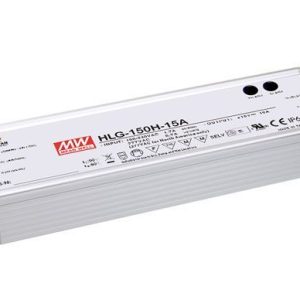

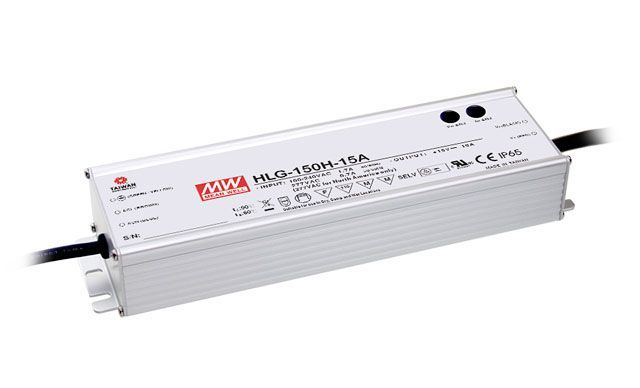

HLG-150H-BS – Mean Well HLG-150H B Series Dimmable IP67 Rated LED Driver 150W 12V – 54V Supply

IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableBuilt-in active PFC, PF>0.9 for 60% of load or higher
More Information

Manufacturer

Mean Well

Output Wattage (W)

150

Dimmable (Type)

AC phase-cut

DC Output Adjustment

+ -10% rated output voltage

EMC Standards

EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage

90~305VAC, 127~431VDC

Safety Standards

UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HLG-150H-spec.pdf
