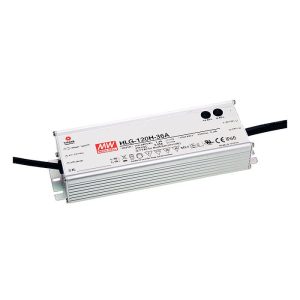

HLG-120H-C1050A – Mean Well LED Driver HLG-120H-C1050A 155W 1050mA Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant current designUniversal AC input Full range (up to 305VAC)Protections: Short circuit Over voltage Over temperatureBuilt-in active PFC functionHigh efficiency up to 94%Cooling by free air convectionOutput current adjustable through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for dry damp wet locations5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
155
Output Current
1050mA
Dimmable (Type)
1-10VDC, PWM signal, resistance
Output Voltage Range (V)
74 ~ 148
Dimensions
220x 68x 38.8
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A
Input Voltage
90 ~ 305VAC, 127~431VDC
Safety Standards
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HLG-120H-C-spec.pdf
