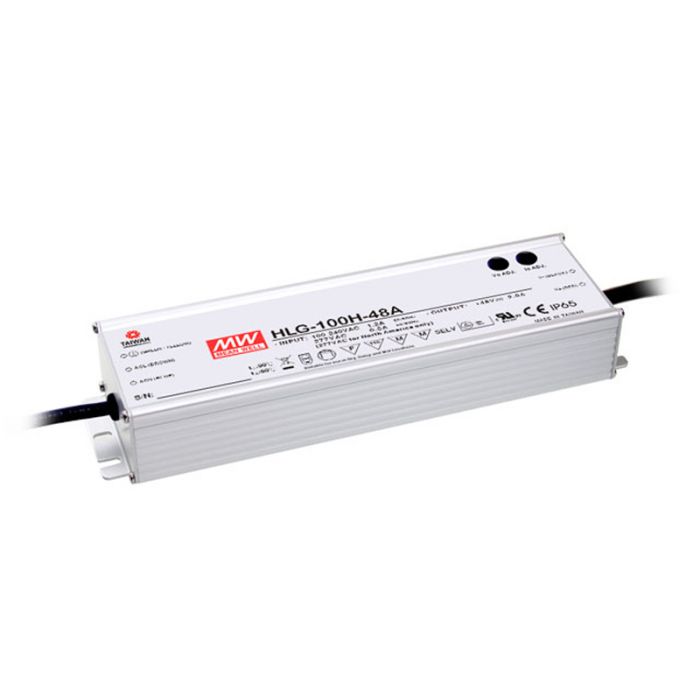

HLG-100H-S – Mean Well HLG-100H Series LED Driver 100W 20V – 54V Online Hot Sale

Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit Over current Over voltage Over temperature
Other features:

Universal AC input (up to 305VAC) Full range
High efficiency up to 94%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
IP65 rated
More Information

Manufacturer

Mean Well

Output Wattage (W)

100

Dimmable (Type)

Choose Option

EMC Standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Input Voltage

90~305VAC, 127~431VDC

Safety Standards

UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HLG-100H-spec.pdf
