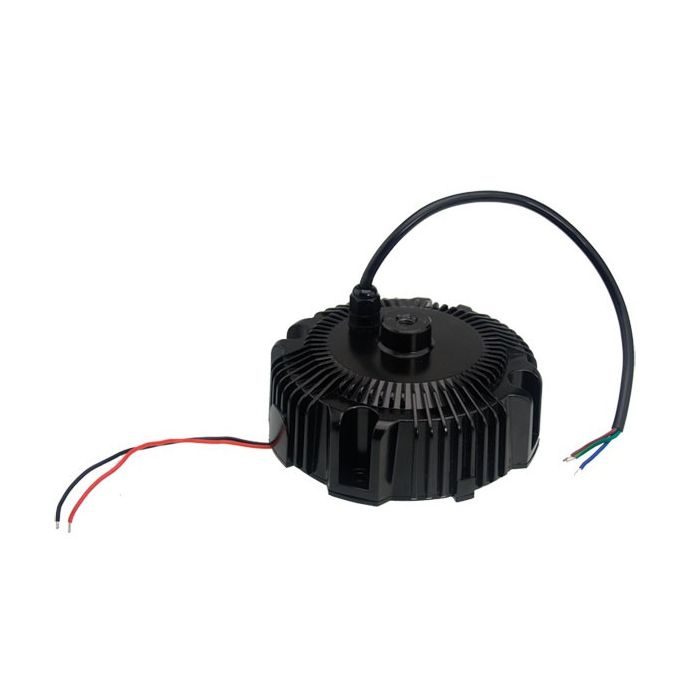

HBG-160-48B – Mean Well LED Driver HBG-160-48B 158W 48V Online Hot Sale

IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeBuilt-in active PFC, PF>0.9 for 60% of load or higherHigh efficiency up to 93.5%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unit
More Information

Manufacturer
Mean Well

Output Wattage (W)
156

Output Voltage
48V

Dimmable (Type)
AC phase-cut

Dimensions
132x 132x 66.5

EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A

Input Voltage
90~305VAC, 127~431VDC

Safety Standards
UL8750, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+70°C (refer to output derating curve)

PDF Datasheet
HBG-160-spec_14.pdf
