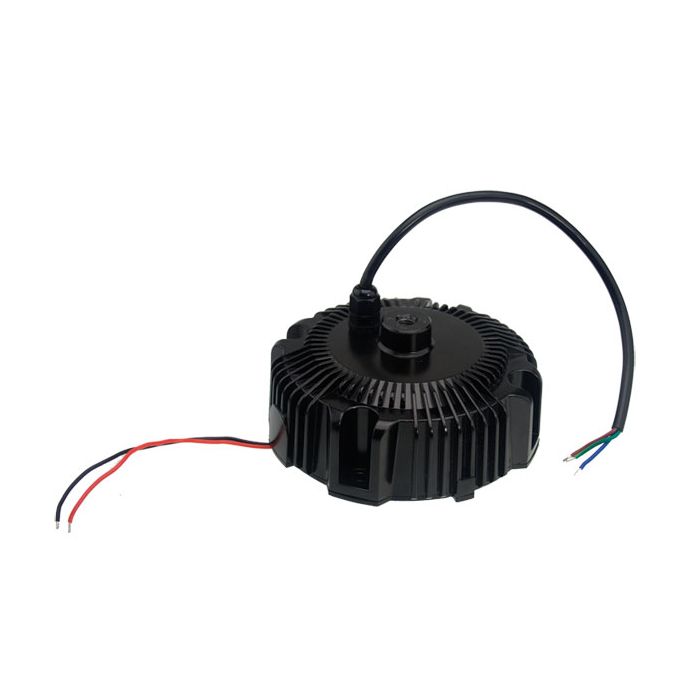

HBG-160-24A – Mean Well LED Driver HBG-160-24A 156W 24V Online

IP65 design for indoor or outdoor installationsBuilt-in active PFC function5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features: Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 93.5%Cooling by free air convectionSuitable for dry, damp and wet locationMeet 4KV surge immunity level (IEC61000-4-5)Suitable for LED lighting and street lighting application Output and C.C level can be adjusted through internal potentiometer
More Information

Manufacturer
Mean Well

Output Wattage (W)
156

Output Voltage
24V

Dimensions
132x 132x 66.5

EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A

Input Voltage
90~305VAC, 127~431VDC

Safety Standards
UL8750, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+70°C

PDF Datasheet
HBG-160-spec_8.pdf
