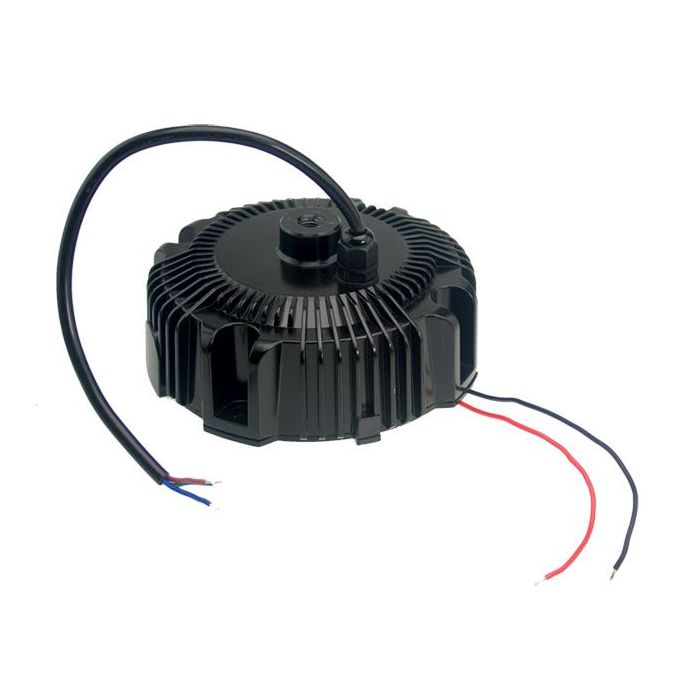

HBG-100-BS – Mean Well HBG-100B Series Dimmable LED Driver 96W – 97W 24V – 60V Online

IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeBuilt-in active PFCHigh efficiency up to 91.5%Output current adjustable through output cableCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity levelClass 2 power unit
More Information

Manufacturer

Mean Well

Output Wattage (W)

96

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

113x 113x 66.5 (LxWxH) mm

EMC Standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A

Input Voltage

90~305VAC, 127~431VDC

Safety Standards

UL8750, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HBG-100-spec.pdf
