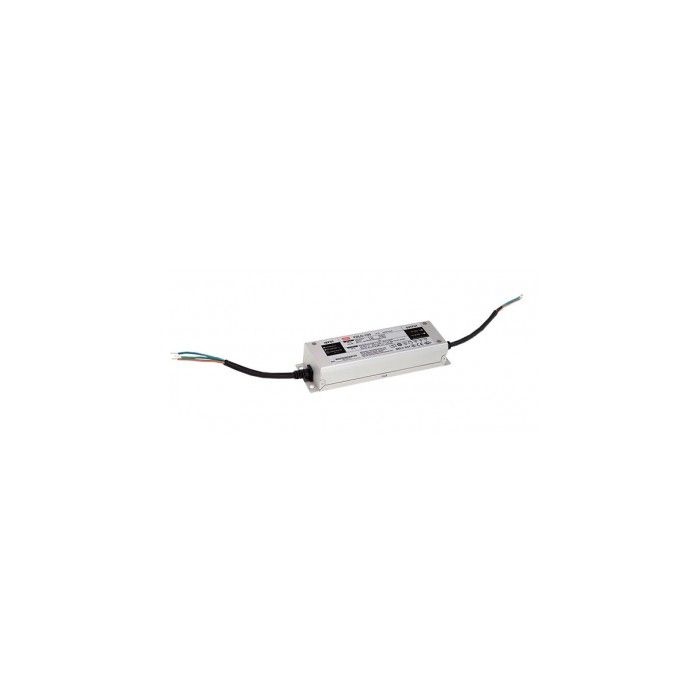

FDLC-100 – Mean Well FDLC-100 Series Constant Power LED Driver Sale

Constant Power mode output
Metal housing design
Full Power at 70~100% max. current
Built-in active PFC function
No load power consumption <0.5W
IP67 rating for indoor or outdoor installations
Output current adjustable via potentiometer
3 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
100

Output Current
1850mA

Dimmable (Type)
No

Output Voltage Range (V)
30 ~ 54V

DC Output Adjustment
1300~ 3000mA

Dimensions
180x53x33mm (LxWxH)

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (load?70%) ; EN61000-3-3,GB17743,GB17625.1,EAC TP TC 020

Input Voltage
180 ~ 295VAC 254 ~ 417VDC

Safety Standards
LVD EN61347-1,EN61347-2-13 Independent, GB19510.1,GB19510.14,EAC TP TC 004,IP67 approved

Output Voltage Options
Single

Working Temperature
-30 ~ +90°C

PDF Datasheet
FDLC-100-spec.pdf
