EUP12A-1HMC-1 – 1-10v Constant Current Dimming Driver Please read description Sale
25 people are viewing this right now
3 products sold in last 20 hours
Selling fast! Over 11 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
PLEASE READ, this item is no lomnger imported into the UK by our suppliers ,Â
 A viable alternative would be Â
https: www.easy-controlgear.com products eled-10-c100-450v-series0-10v-dimmable-constant-current-led-drivers-10w

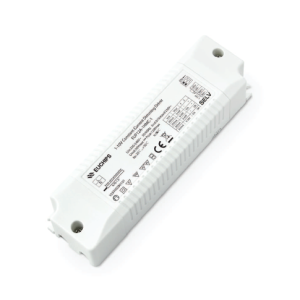

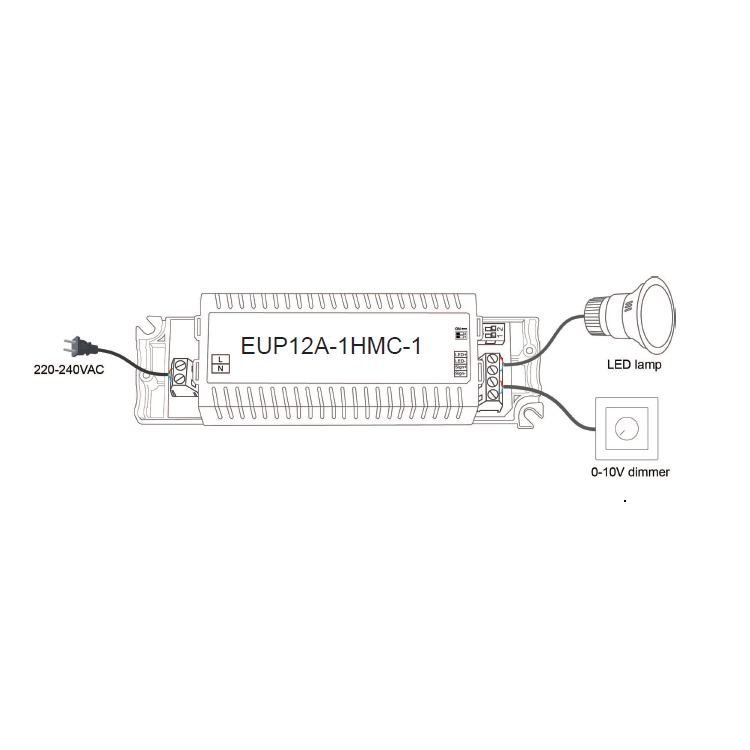

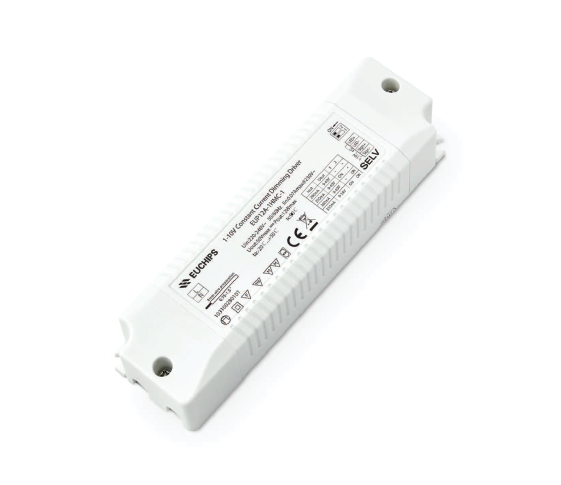

EUP12A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
- Â Single channel output, output current level selectable by DIP S.W.
- Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
- High input voltage of 220VAC ~ 240VAC
- High efficiency up to 85%
- Built-in active PFC function
- 100% output when no dimming signal input, can be used as normal power supply
- Dimming effect smooth, no flicker
- Protections: Short circuit, over load, over temperature
- Suitable for indoor LED lighting application, such as down light, spot light, and so on
