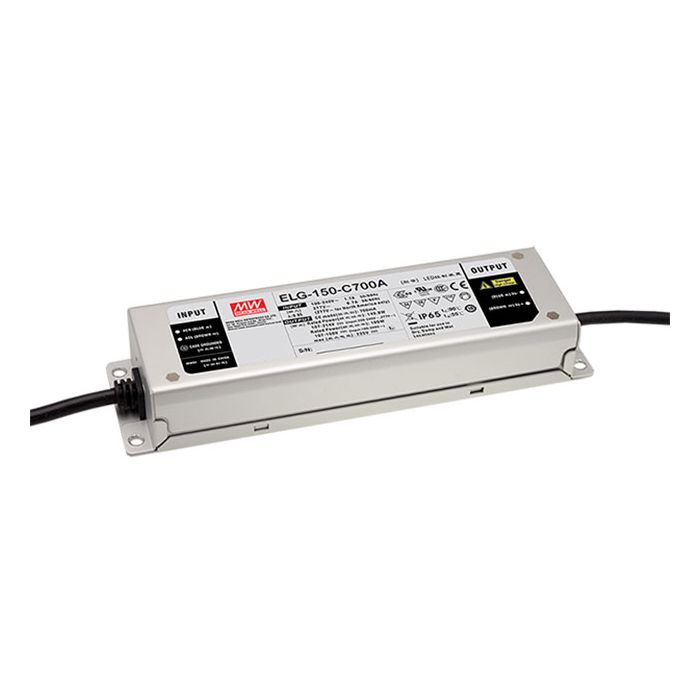

ELG-150-C700 – Mean Well LED Driver ELG-150-C700 149.8W 700mA Supply
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant current mode outputTypical lifetime>50000 hoursProtections: Short circuit Over Voltage Over temperatureOther features:Built-in active PFC functionNo load power consumption <0.5WIP67 IP65 rated design for indoor or outdoor installationsMetal housing design3 in 1 dimming5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
150
Output Current
700mA
Dimmable (Type)
3 in 1 Dimming
Output Voltage Range (V)
107~214
DC Output Adjustment
350-700mA (A type only)
Dimensions
219x 63x 35.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
Input Voltage
100-305VAC 142-431VDC
Safety Standards
UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved
Output Voltage Options
Single
Working Temperature
Tcase= -40~+85°C (Refer to OUTPUT LOAD vs TEMPERATURE )
PDF Datasheet
elg-100.pdf
