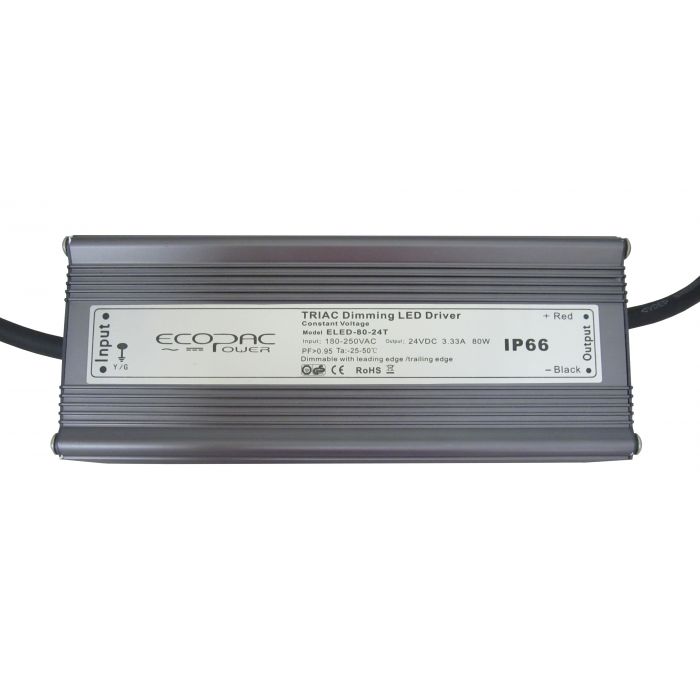

ELED-80-S – Ecopac ELED-80-T Series Constant Voltage LED Driver 80W 12V – 24V on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant voltage Triac Mains dimming
Suitable for leading trailing edge
Protections: Short circuit Over voltage
Other features:
Built-in active PFC funtion (PF>0.95)
Cooling by free air convection
IP66 Design
Fully isolated, delivering up to 80W of power
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
80
Dimmable (Type)
Triac Leading edge & Trailing edge
Dimensions
200x 68x 45
EMC Standards
Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level
Input Voltage
175~265VAC
Safety Standards
EN-60950-1
Output Voltage Options
Single
Working Temperature
-40°C ~ +60°C
PDF Datasheet
ELED-80-T.pdf
