ELED-50-C700 1400T ELED-50-C700 1400T Selectable Constant Current LED Driver 700-1400mA Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Obsolete replaced by the Â
https: www.easy-controlgear.com products eled-60p-c600-2100t-60w-triac-leading-trailing-dimming-dip-switch-output-current-led-driver?_pos=13&_sid=af54bef3e&_ss=r
Â
Â

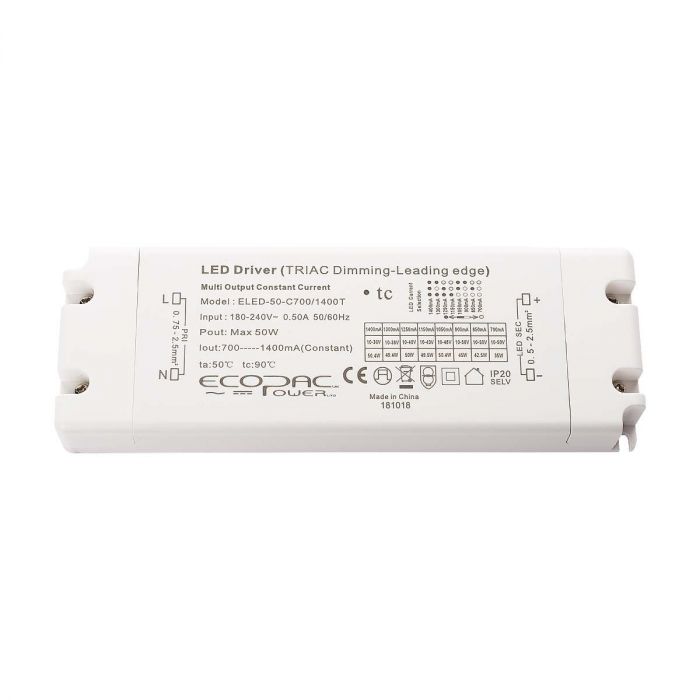

The Ecpoac Power ELED-50-C700 1400T features the ability to select the output current required between 700mA and 1400mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty. Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit Over load Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Leading Edge Triac dimmable 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 50 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 700-1400mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-50-CT.pdf
