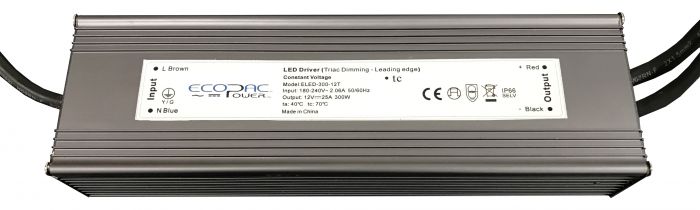

ELED-300-T-S – ECOPAC ELED-300-T SERIES LED DRIVER 300W 12-24V For Discount

Constant Voltage Design
Works with Leading edge and Trailing edge Triac dimmers
Protections: Short circuit Over Loading Over Current
Other features:

AC input 180-250VAC
Cooling by free air convection
90% efficiency
3 years warranty
More Information

Manufacturer

Ecopac Power

Output Wattage (W)

300

Dimmable (Type)

Triac Leading edge & Trailing edge

Dimensions

276x 78x 47

EMC Standards

Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level (surge 4KV) Criteria A

Input Voltage

180-240VAC

Safety Standards

EN61347-1, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-40~+60°C

PDF Datasheet

ELED-300-T.pdf
