D2N 1 DALI-2 Addressable Conversion Online Hot Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The D2N 1 and D2N 1S 80 automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The D2N 1 will operate LED loads between 6-55V forward and the D2N 1S 80 will operate LED loads between 6 and 80V forward. Suitable to operate with the LiteMesh wireless system.
net-19-33-17
This product is fully DALI-2 compliant and in keeping with the DALI-2 Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED.
The D2N range has been independently certified by TÃœV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.
D2N 1 DALI-2 Addressable Conversion
Specifications
- DiiA Registered DALI-2 Device
-
- 2-pole Changeover Relay
-
- Additional 3rd Pole Relay for Driver Protection
-
- Deep Discharge Protection
-
- Intelligent, Low Energy, Charging Circuit
-
- Extra Long Life LiFePO4 Cells
-
- Slim Module for Integral Mounting
-
- D2N 1 – Average Emergency Output of 2.2W
-
- D2N 1S – Average Emergency Output of 2.6W
-
- Can Operate with the LiteMesh Wireless System
-
- TÃœV Tested and Certified
-
- LiFePO4 Automatic Battery Protection and Recovery
-
D2N 1D2N 1S 80
LED Voltage Range
6-55V6-80V
I Rated
352mA – 40mA410mA – 33mA
P Rated
2.2W2.6W
LED Voltage Limit
55V80V
Battery Discharge Current
950mA1.1A
Mains Supply
230-240V AC 50 60Hz
Power Rating
1.4W 12mA λ = 0.48
Charge Current
225mA nominal
Recharge Period
24-hours
Battery Pack
3.2V 3.8Ah LiFePO43.2V 4.8Ah LiFePO4
Battery Cut Off
2.5V
Ambient Temperature (Ta)
Module and Battery 5-35°C
Case Temperature (Tc)
Battery 5-55°C, Module 5-70°C
Integral Kit Size
Module – 178mm x 30mm x 22.5mm FC=172mm 1 Battery – 90mm 28mm Ø 1S Battery – 230mm x 24mm x 21mm
Order Codes
Order Code
Description
D2N 1-K

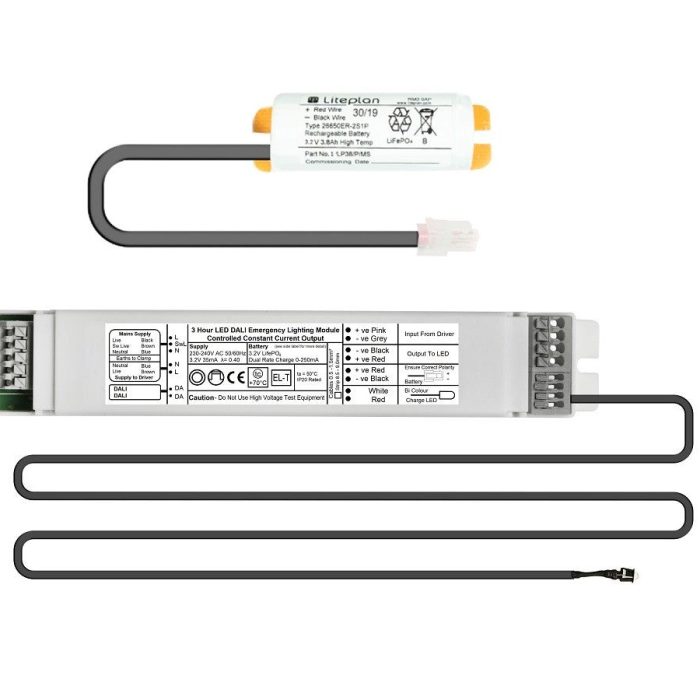

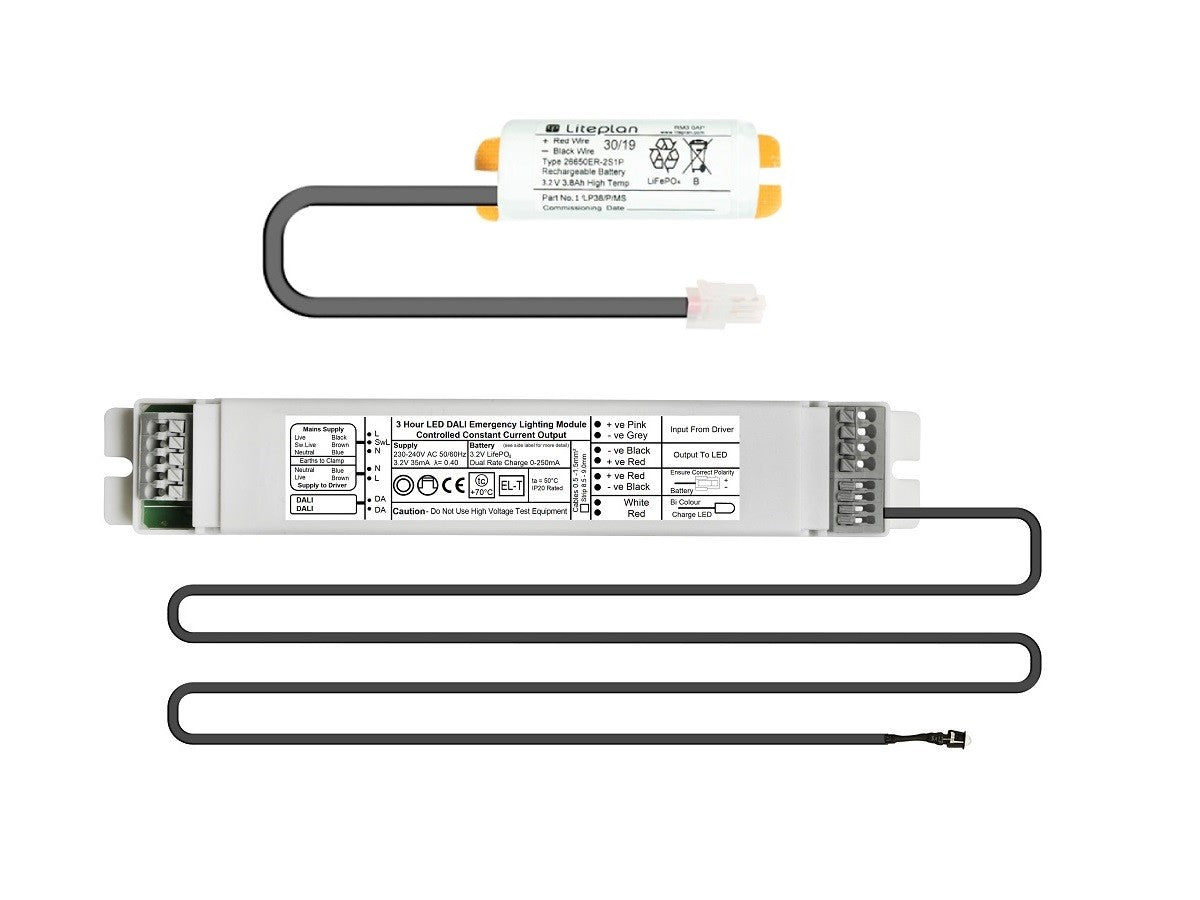

Module, single cell battery and charge LED indicator for LED loads from 6-55Vf
D2N 1S 80-K

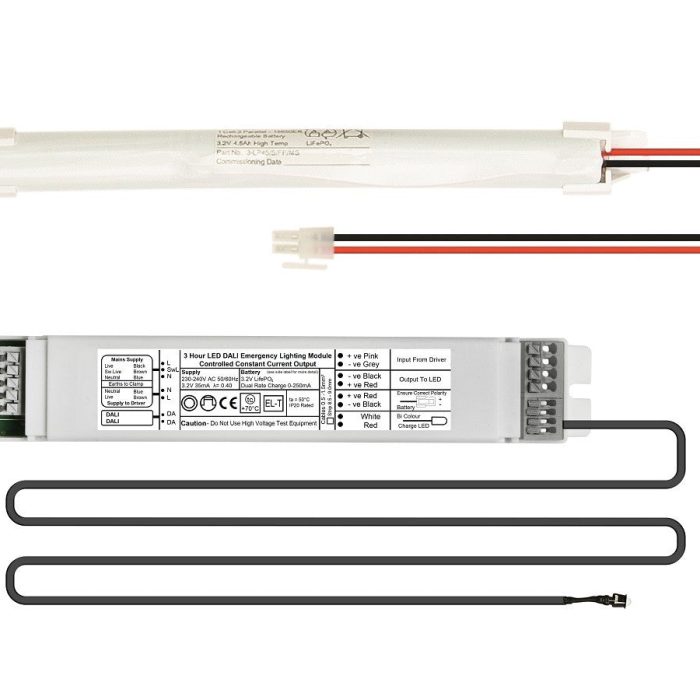

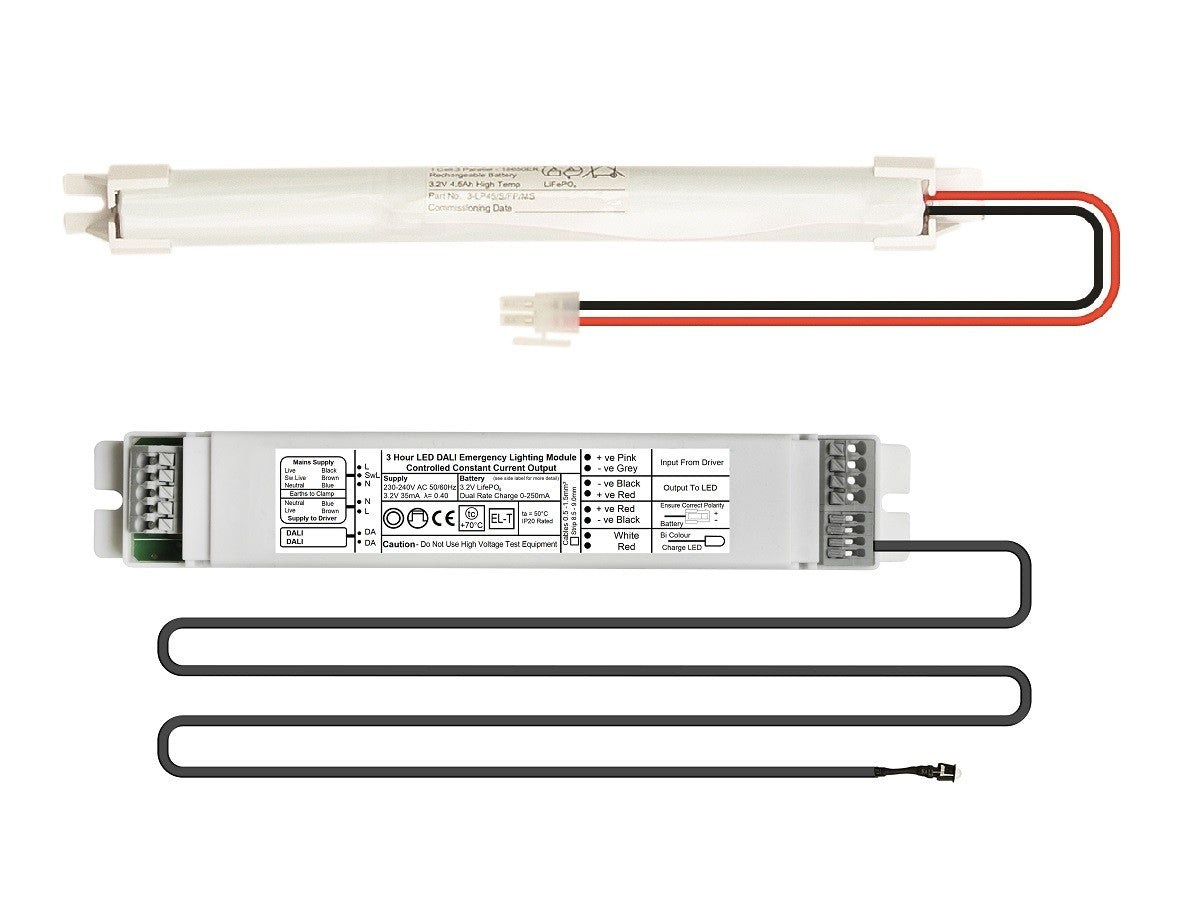

Module, three cell battery and charge LED indicator for LED loads from 6-80Vf
Voltage Range
6-55V 1 Cell battery, 6-80V 3 Cell Slim Battery
